Components: Electronics & 3D-Files (STLs)

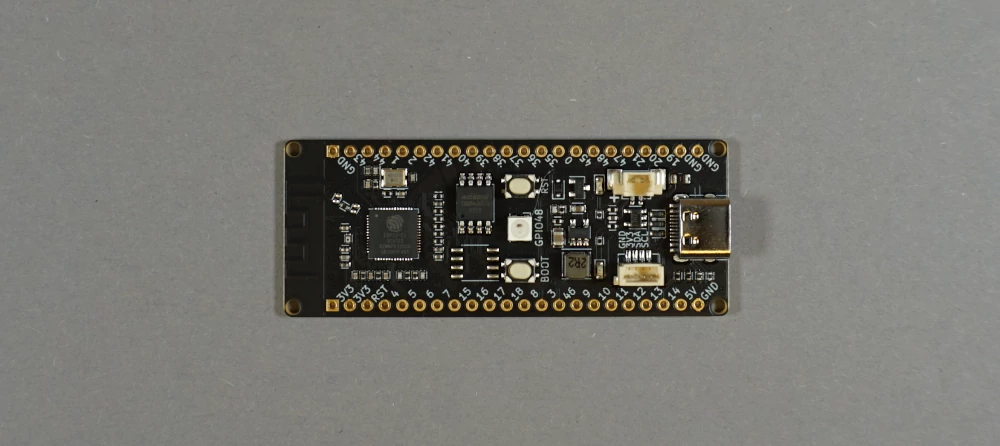

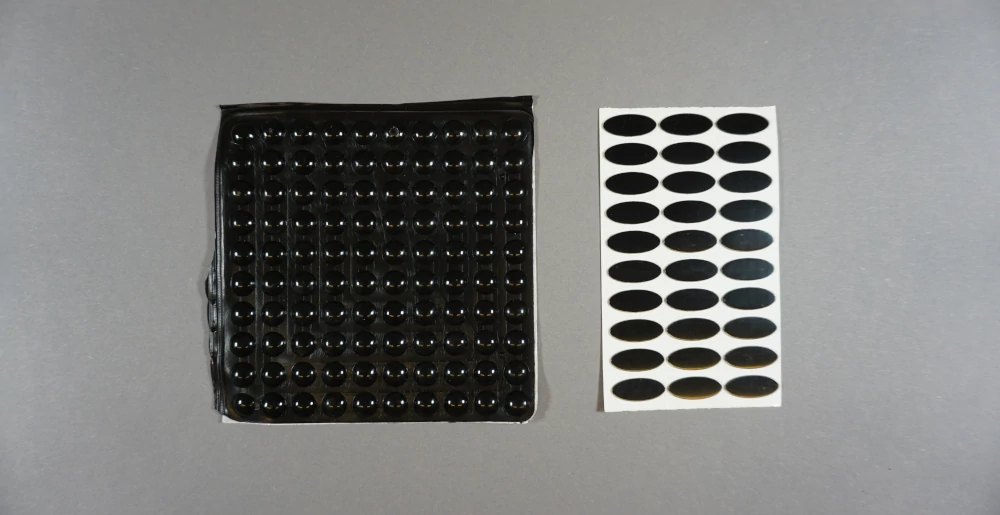

The brain of the CAT is the BPI-Leaf-S3. The PCBs for the different modules can be ordered from JLCPCB, and other parts can be obtained from AliExpress. If you are not familiar with JLCPCB, the ordering process is explained in the video below. The STL files can be downloaded from Thingiverse.
note:
deselect the LED from placement on the PCB

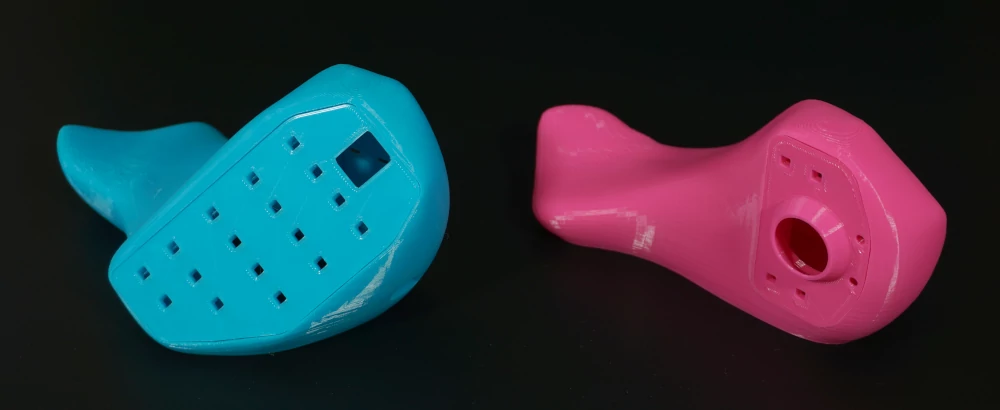

3D-Printing Settings
-
Nozzle - 0.4 mm
-
Layer height - 0.2 mm, exception for keys - 0.12 mm
-
All parts can be printed without support
-
Infill can be based on your preference for the cat-weight (personally: I go for 5% - Lightning)
-
For complicated geometry drop the printing speed of the first layer to 50%
Alternatively a DIY electronic set can be purchased in LYNXware Shop
Assembly
Electronics

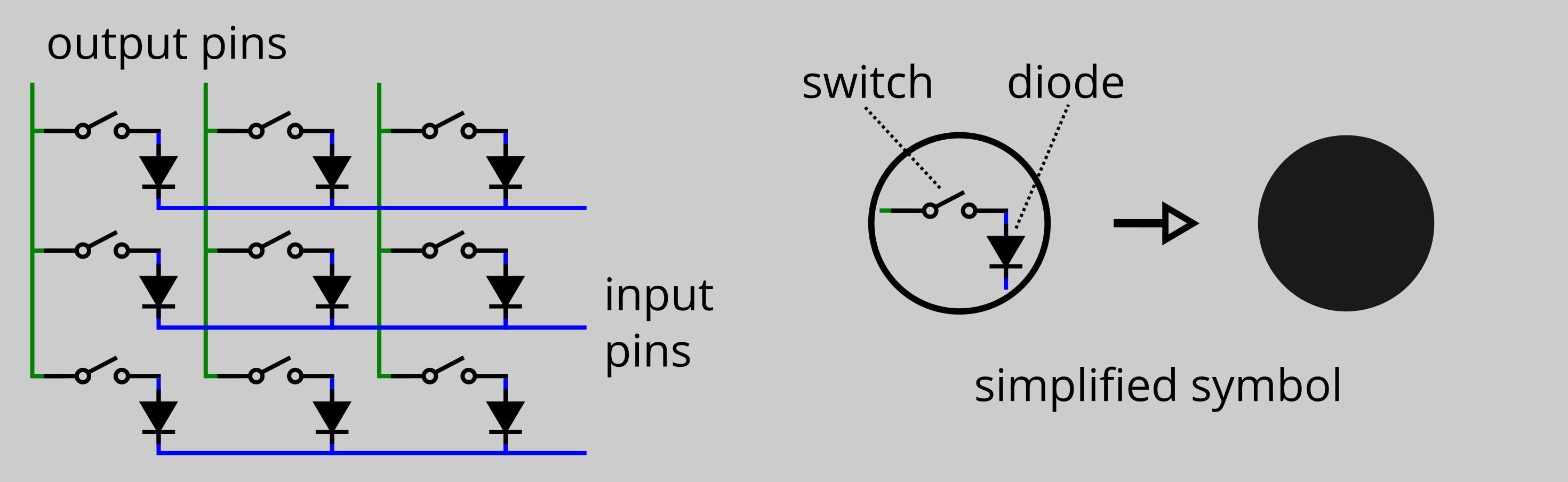

Switch matrix with diodes
Diodes are included in the circuit to prevent 'ghosting' and 'blocking' issues that can occur when multiple keys are pressed simultaneously.

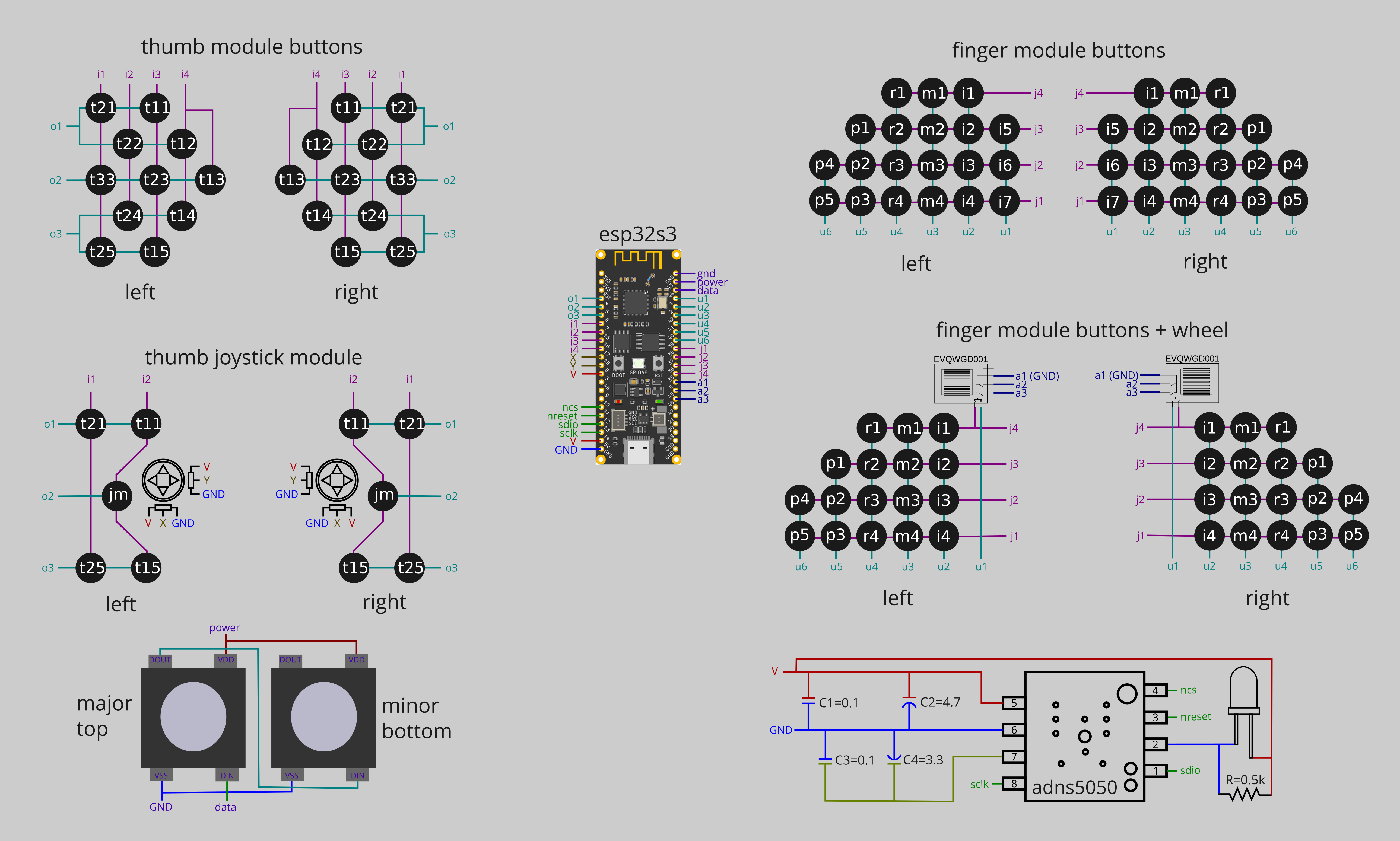

Circuit: Pins-Legend

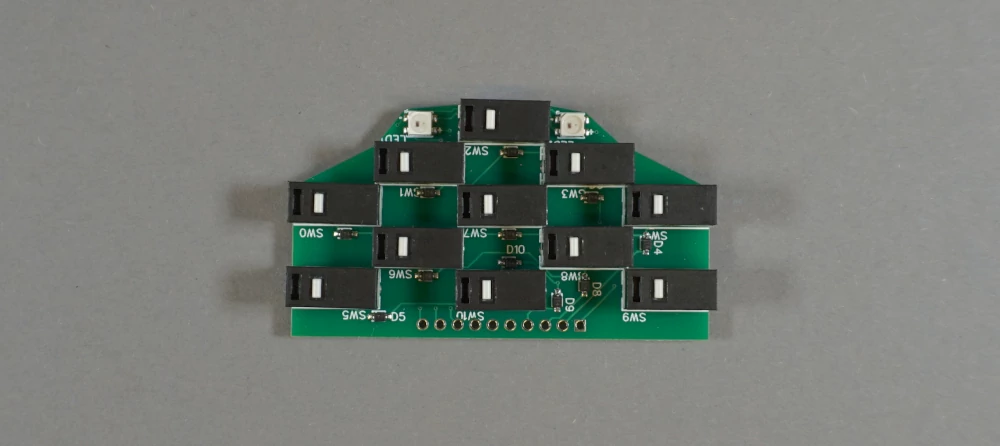

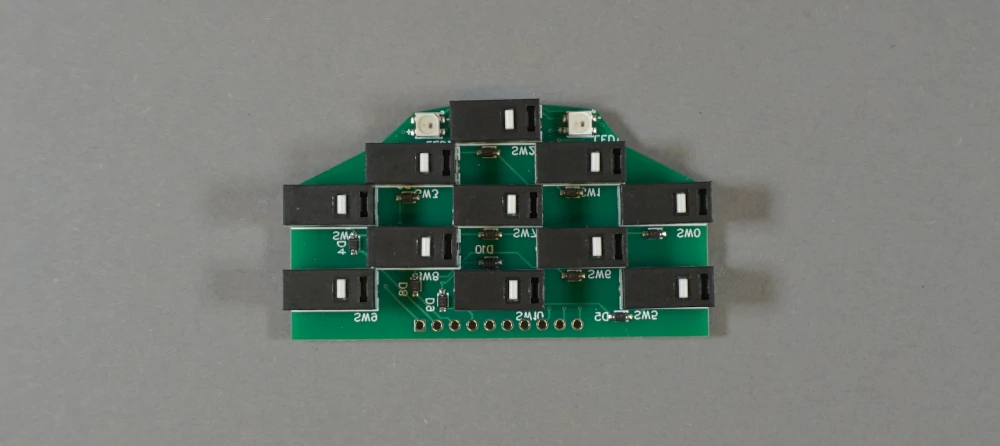

Circuit: Thumb-Module

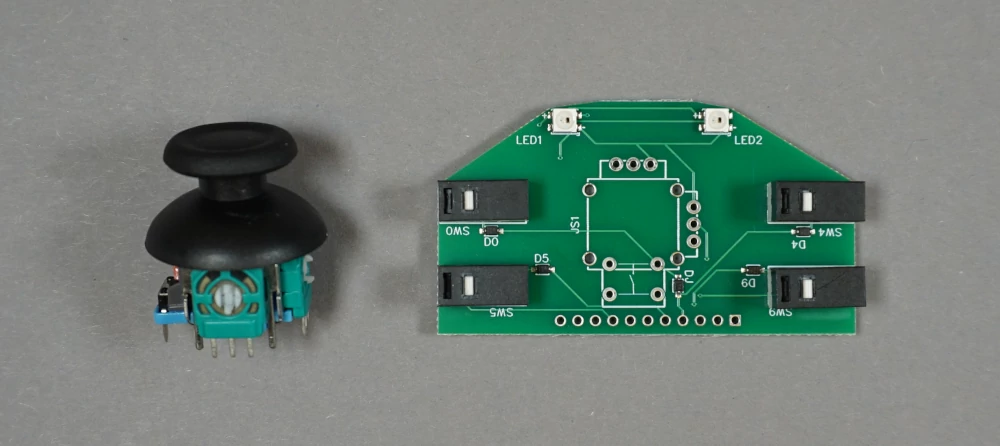

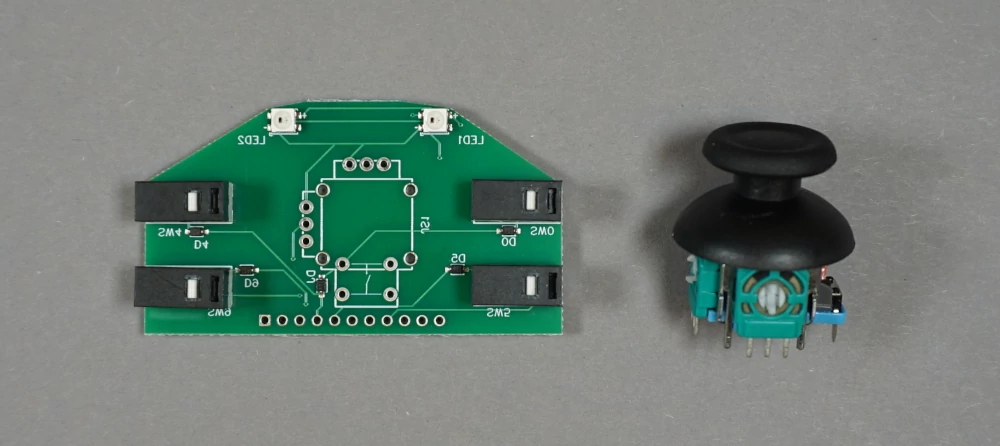

Circuit: Thumb-Module with Joystick

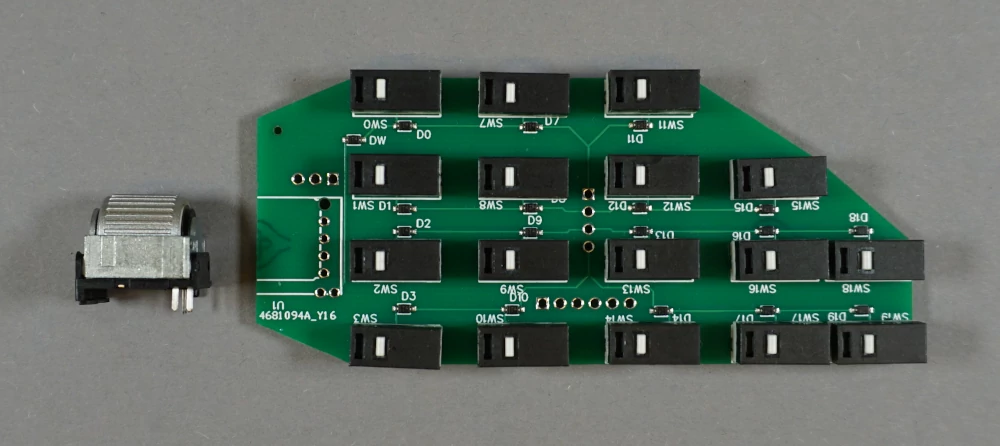

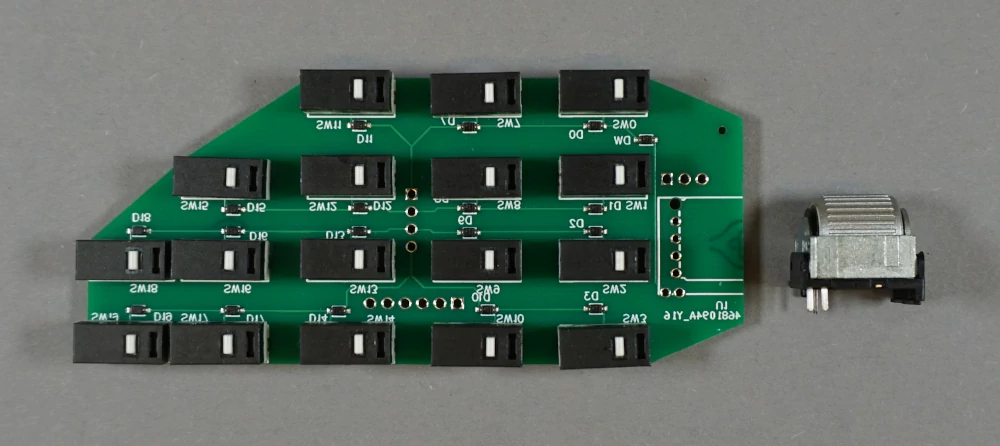

Circuit: Finger-Module
Circuit: Finger-Module with Scroll Wheel
Circuit: Mouse Module

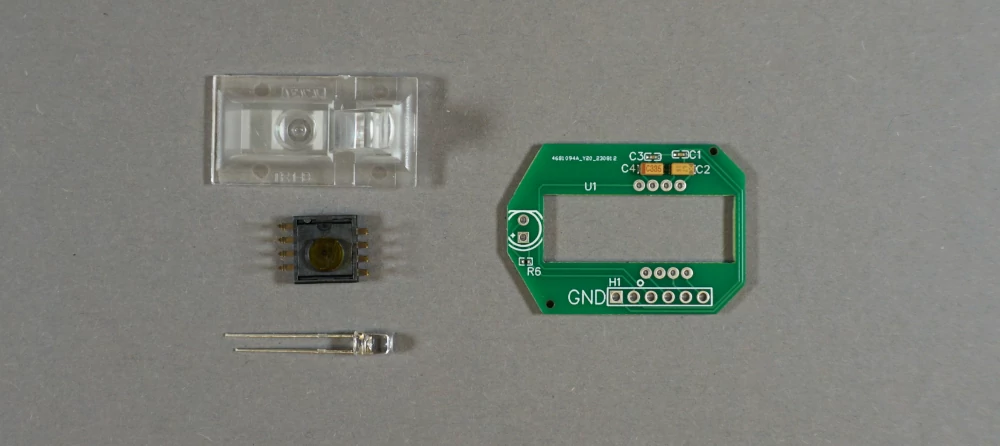

Circuit: Gyroscope Module
Firmware for the CAT
The firmware is written in PaltformIO (setup tutorial) with following options:
-
platform -> espressif32
-
board -> bpi_leaf_s3
-
framework -> arduino
Software for key assignment - LYNXapp
Assembly Tutorial
Future of the project
Here is a list of the next features and improvements.
-
Trackball module
-
Wireless Connection
-
optimizing the form and design for different hand sizes
-
web game to accelerate the adaption
